Brass Balls

Brass balls provide excellent resistance to corrosion by water, and they are substantially lower in cost than other corrosion-resisting balls. Brass balls are frequently used in many types of valve applications requiring small-size balls.

Brass balls also have the ability to resist the corrosive effects of fuel oil, gasoline, butane, dry carbon dioxide, benzene, lime-sulphur mixture and similar chemical agents.

Brass Balls:   Available Grades and Sizes    Click here for sizes and pricing

Grade

Size Range in Inches and Millimeters

200 - 500 - 1000

1/8 - 3/4        3.175 - 19.050

Balls per Pound

Size

Balls per Pound

Inches

Millimeters

1/8

3.175

3,200

5/32

3.968

1,640

3/16

4.762

947

7/32

5.556

596

1/4

6.350

400

9/32

7.143

281

5/16

7.937

205

11/32

8.731

154

3/8

9.525

118

7/16

11.112

74.5

1/2

12.700

50.0

9/16

14.287

35.1

5/8

15.875

25.6

11/16

17.462

19.2

3/4

19.050

14.8

Material Analysis:
Material is SAE specification CA260 alloy.

Material

CDA

Federal

Military

ASTM

UNS

AMS

Military and
Gov't Stds.

Brass

260

QQ-W-321c
Comp.7

MILW-6712A
Type II

B134-52
Alloy 7

C-26000

4712A
4713A

MS 19062
CCAX2

Chemical Analysis:
Copper......................................................................68.50% to 71.50%
Lead..........................................................................0.07% maximum
Iron............................................................................0.05% maximum
Zinc...........................................................................Balance

Mechanical Properties:
Hardness as measured on parallel flat surfaces is Rockwell B 75 to 87.
Tensile Strength............................................................80,000psi
Yield Strength................................................................57,000psi
Elongation in two inches..............................................20%
Reduction in area.........................................................85%
Modulus of elasticity.....................................................15,000,000psi
Density...........................................................................0.306 lbs/cu. in.

� copyright 2005 Hoover Precision Products, Inc., All Rights Reserved

-

Brass Balls

260 Alloy Brass Balls
Stock # Grade # Diameter Balls/ Pkg.  Price/Pkg.  Purchase Online
KB-828 5 0.062" 1000 $148.10 Buy Now
KB-830 300 0.062" 5000 $606.00 Buy Now
KB-840 200 0.062" 5000 $666.50 Buy Now
KB-1785 200 0.062" 100 $23.60 Buy Now
KB-1786 200 0.093" 100 $24.86 Buy Now
KB-1787 200 0.125" 100 $25.99 Buy Now

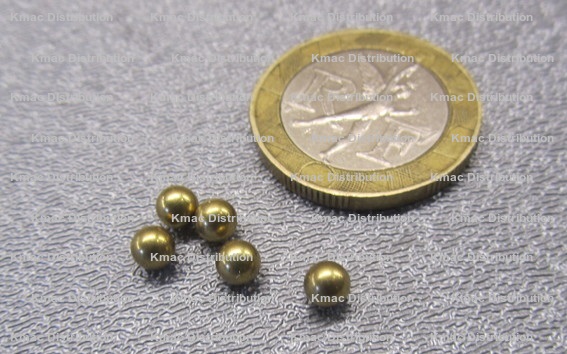

KB-1788 200 0.156" 100 $28.81 Buy Now
KB-820 200 0.187" 10,000 $861.00 Buy Now
KB-1799 200 0.187" 100 $30.49 Buy Now
KB-1790 200 0.218" 100 $31.43 Buy Now
KB-832 200 0.250" 4350 $795.83 Buy Now
KB-1782 200 0.250" 100 $34.78 Buy Now
KB-833 200 0.281" 3000 $687.00 Buy Now
KB-834 200 0.312" 2200 $720.28 Buy Now

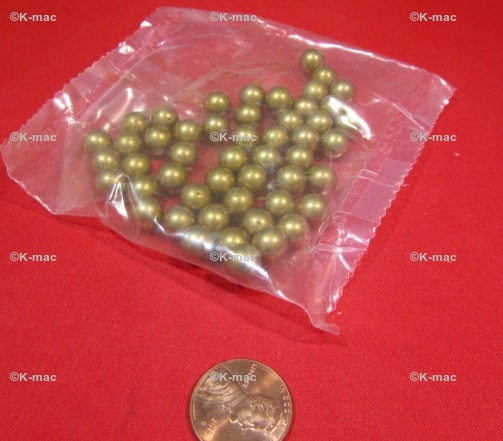

KB-1792 200 0.312" 50 $35.15 Buy Now
KB-835 200 0.343" 1650 $636.74 Buy Now
KB-1793 200 0.343" 50 $24.15 Buy Now
KB-836 200 0.375" 1300 $671.78 Buy Now
KB-1794 200 0.375" 50 $36.98 Buy Now
KB-1795 200 0.437" 25 $37.08 Buy Now
KB-837 200 0.500" 550 $594.88 Buy Now
KB-1796 200 0.500" 25 $38.84 Buy Now

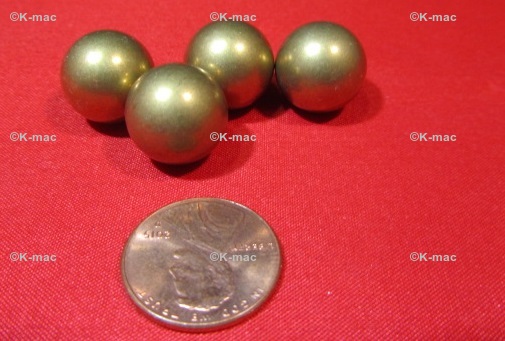

KB-1797 200 0.562" 20 $39.45 Buy Now
KB-838 200 0.625" 275 $656.66 Buy Now
KB-1826 200 0.625" 15 $40.28 Buy Now
KB-810 200 0.750" 160 $678.11 Buy Now
KB-1825 200 0.750" 5 $33.18 Buy Now
